Universal USB to I2S Interface Indicator PCB

Over at avclub.gr we designed a custom PCB to ease the implementation of the Universal USB to I2S Interface Indicator. It was a joint effort between myself and Manolis (a.k.a. lemon at avclub.gr). I did the circuit design and Manolis did the PCB design work.

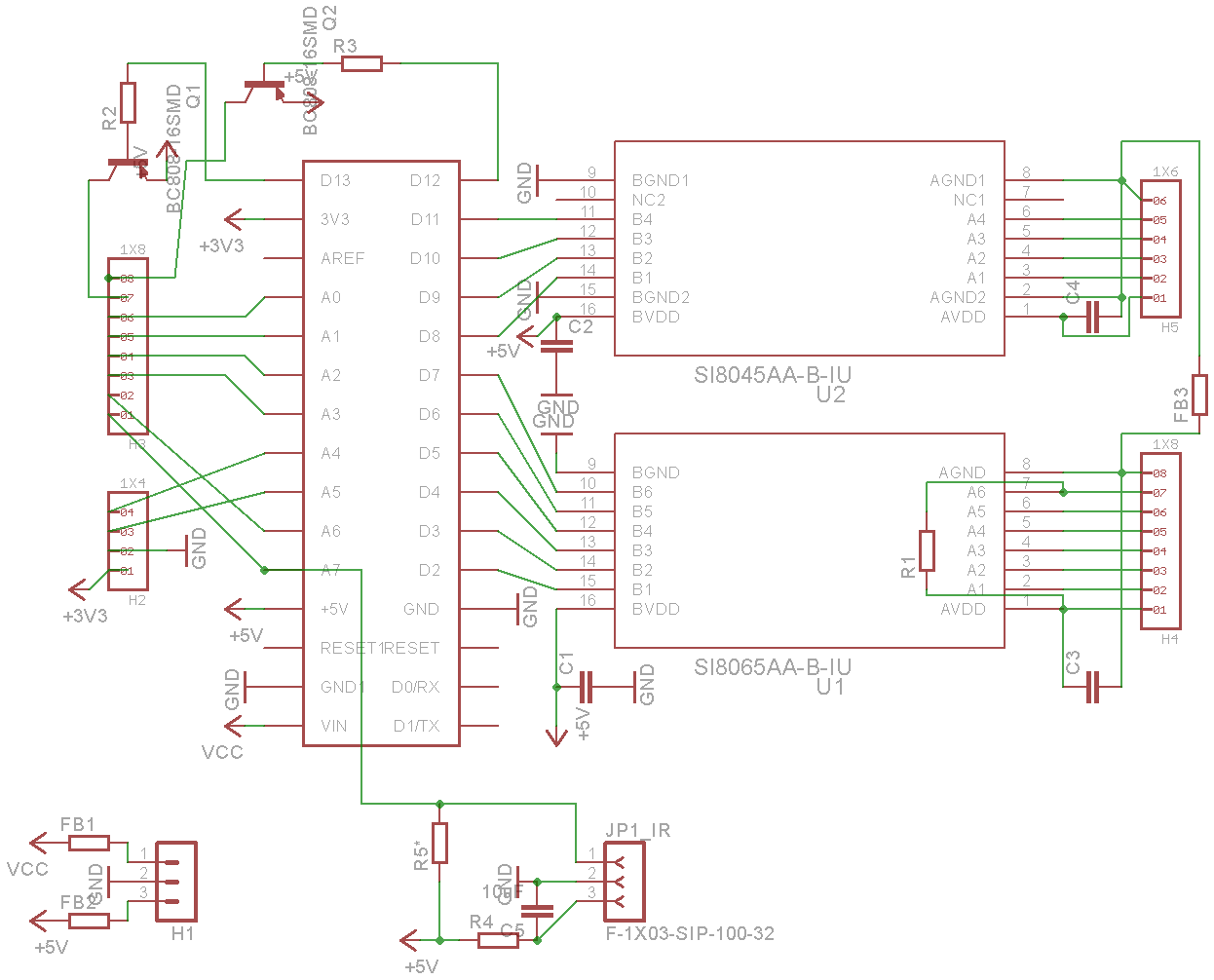

This is the schematic of the final version of the circuit:

USB2I2S schematic 0.8b

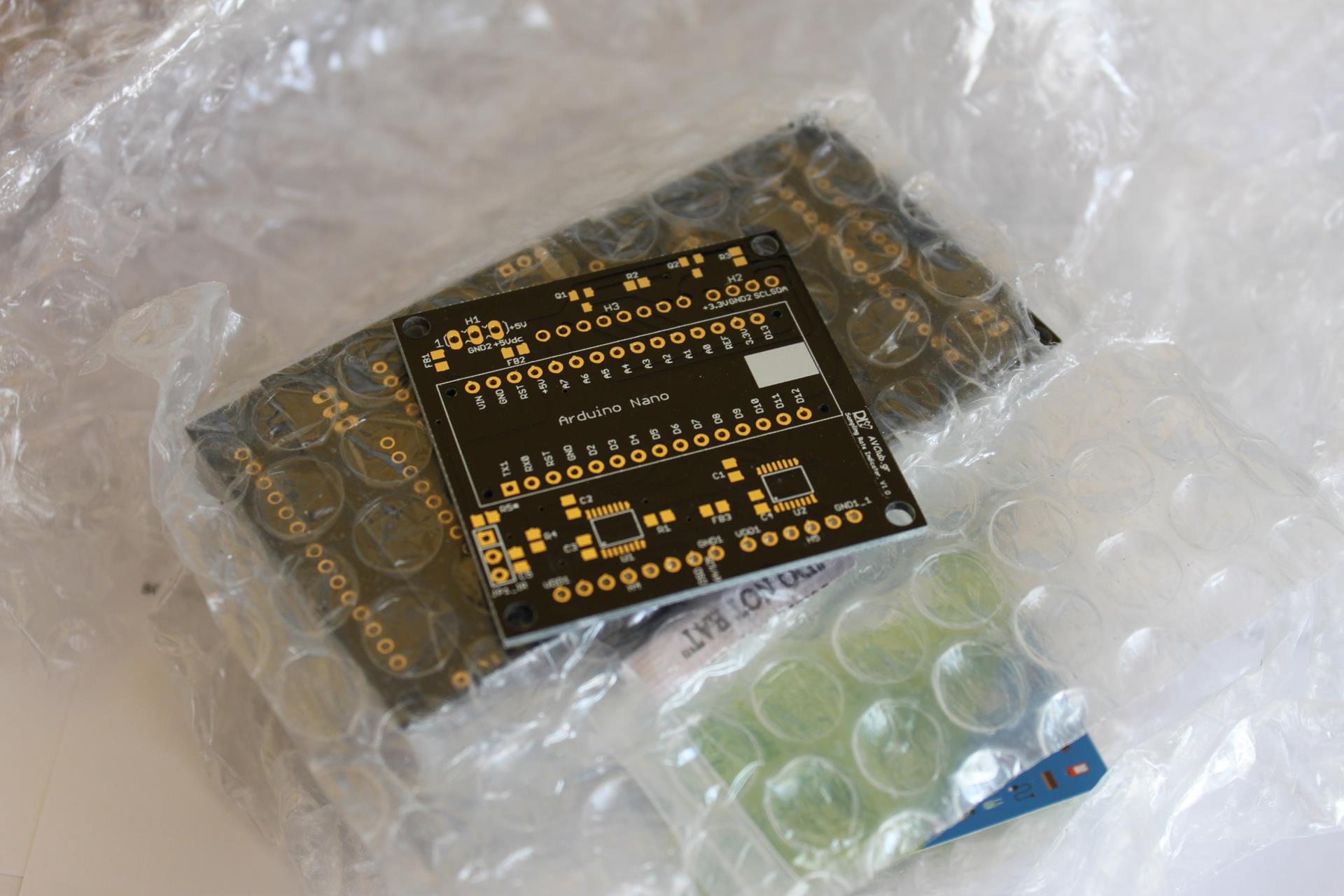

When the PCB design was finalized, a GB was organized. When the GB was finished we placed an order on seeedstudio.com’s Fusion PCB service. About 3 weeks later the PCBs had arrived:

IMG_9927

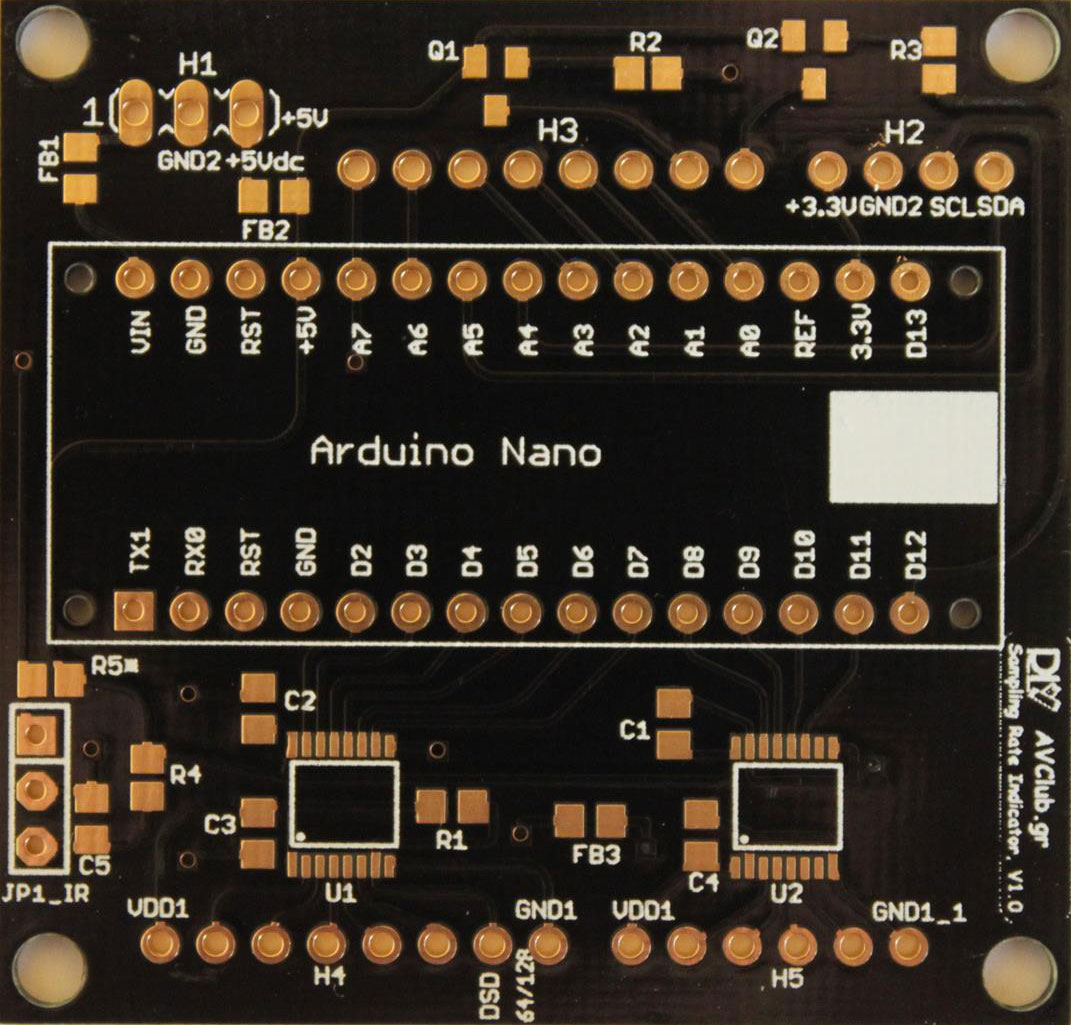

PCB_from_fabThe production quality was truly excellent.

From top to bottom we have:

  • H1: Header for power. It may be either 5VDC (regulated) or 7-12VDC (non-regulated). Pin 1 is 7-12VDC, Pin 2 is GND, Pin 3 is 5VDC.
  • H2: OLED display connector. Pin 1 is 3.3V to the display, Pin 2 is GND, Pin 3 is SCL, Pin 4 is SDA.
  • H3: Header for future expansion. It exposes the unused I/O of the Nano in case it may be of use in the future. The last two pins are buffered by transistors so that they can supply enough current to engage small relays (5VDC, up to 100mA per pin). Pin A7 is connected to JP1_IR as well (see below).

Next up is the socket for the Arduino Nano. You will notice that the USB port should be on the right.

At the bottom of the board we have:

  • JP1_IR: This is a connector for an IR Receiver module. Software support for this is currently in beta. Pin 1 is signal out, Pin 2 is GND, Pin 3 is power (5V). Note that R4 and C5 provide filtering for the power and should be installed. R5 is an optional pull-up resistor. It should not be installed for normal use.
  • H4: This is the “dirty” side of the U1 isolator. Pin 1 is Vdd (usually 3.3V or whatever your USB Interface module uses for its logic levels). Pins 2 through 7 are inputs and Pin 8 is GND.
  • H5: This is the “dirty” side of the U2 isolator. Pin 1 is Vdd (usually 3.3V or whatever your USB Interface module uses for its logic levels). Pins 2 through 5 are inputs and Pin 8 is GND.

Note that in the future a Si8642BA may be used in place of U2. With proper support from the code that will turn 2 of the 4 inputs into outputs, so that they may be used to control a DAC board (for example to select an input).

This is the full BoM:

Part Description
FB1, FB2, FB3 Ferrite Bead 0805
R1 2.7K 0805
R2, R3 8.75K 0805
R4 100R 0805
R5 10K 0805 (optional)
C1, C2, C3, C4 100n X7R 0805
C5 10uF 10V X7R 0805
Q1, Q2 BC808 or equivalent SOT-23
U1 Si8065AA-B-IU
U2 Si8045AA-B-IU (optionally Si8642BA-B-IU)

In case you want to have your own PCBs made, these are the Gerber files: Universal USB to I2S Interface Indicator PCB Gerbers (7327 downloads )

You will also need an Arduino Nano, a suitable OLED display and some cables, connectors, etc. (see project page).

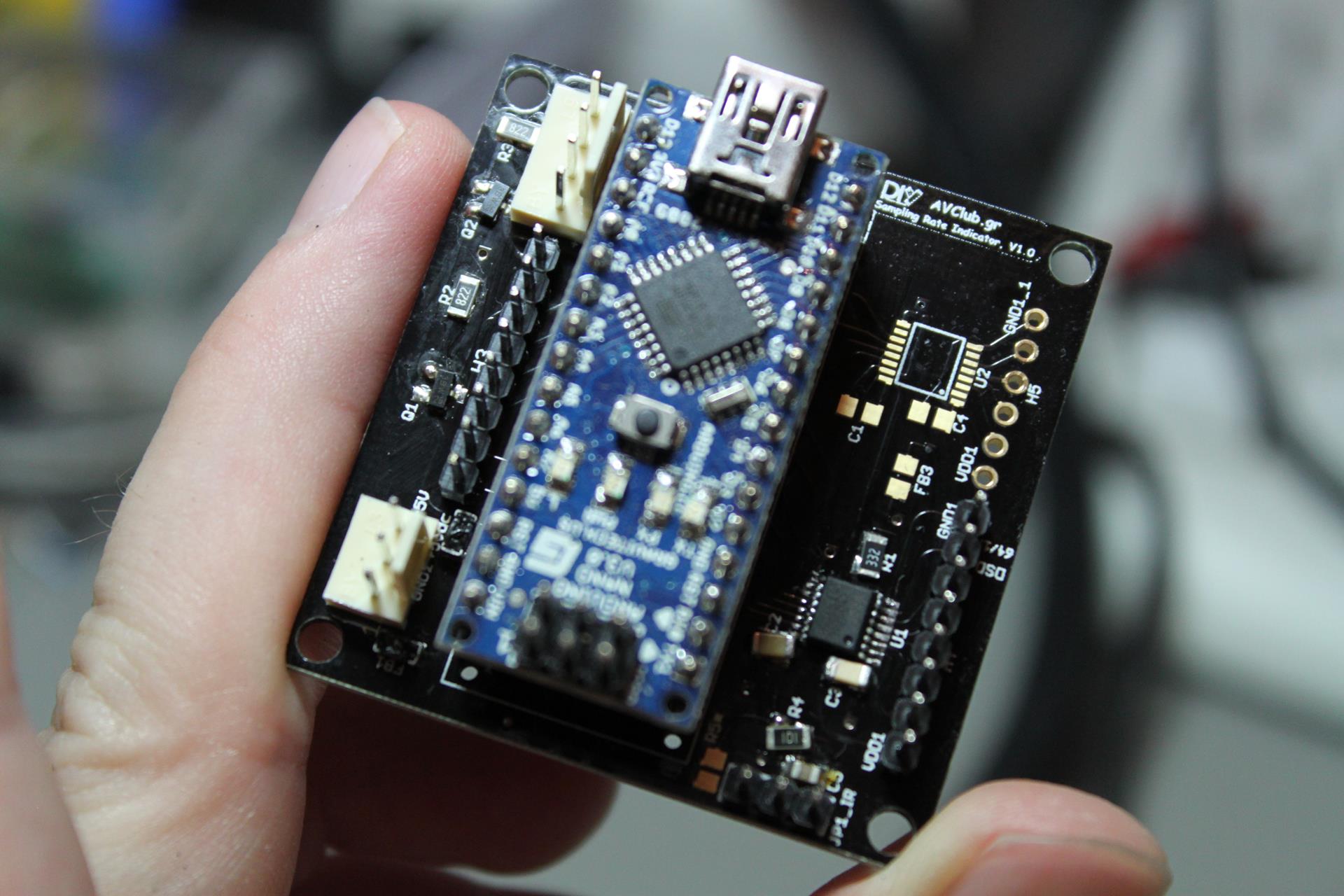

As soon as I received the boards, I built a prototype with whatever components I had lying around (thus the wrong size of most of the resistors & capacitors).

Prototype PCB

And proceeded to test it out with an Amanero Combo384 board:

Everything worked as it was expected. 🙂

At the moment this board (and relevant Arduino code) has been tested with the following USB to I2S interfaces:

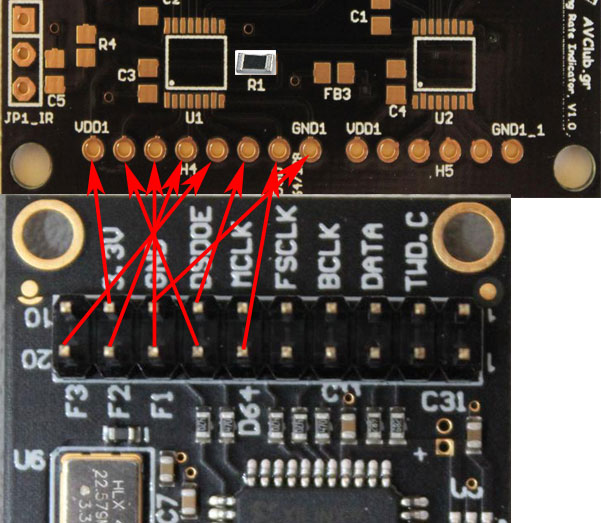

Amanero Combo384
hookup_amanero_v2Note that R1 should be installed for proper operation.

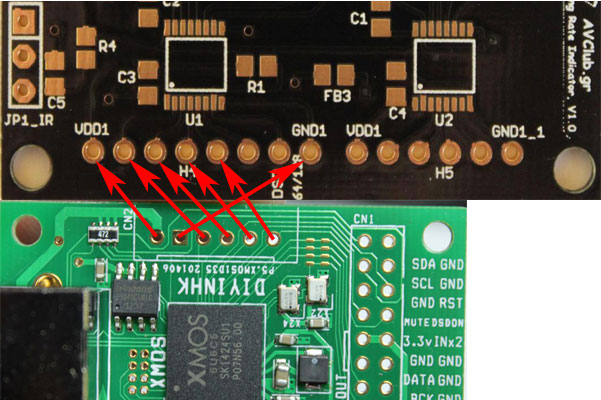

DIYINHK XMOS
hookup_diyinhk_xmos_v2

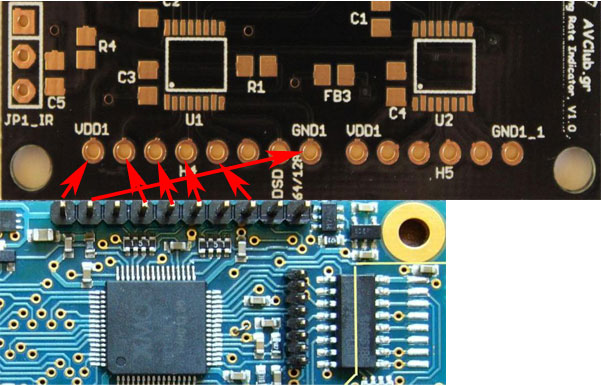

JLSounds I2SoverUSB
hookup_jlsounds_v2

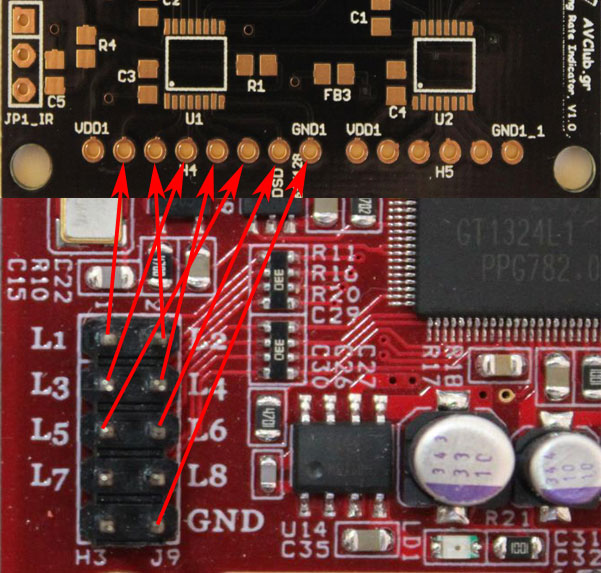

Luckit WaveIO
hookup_waveIO_v2

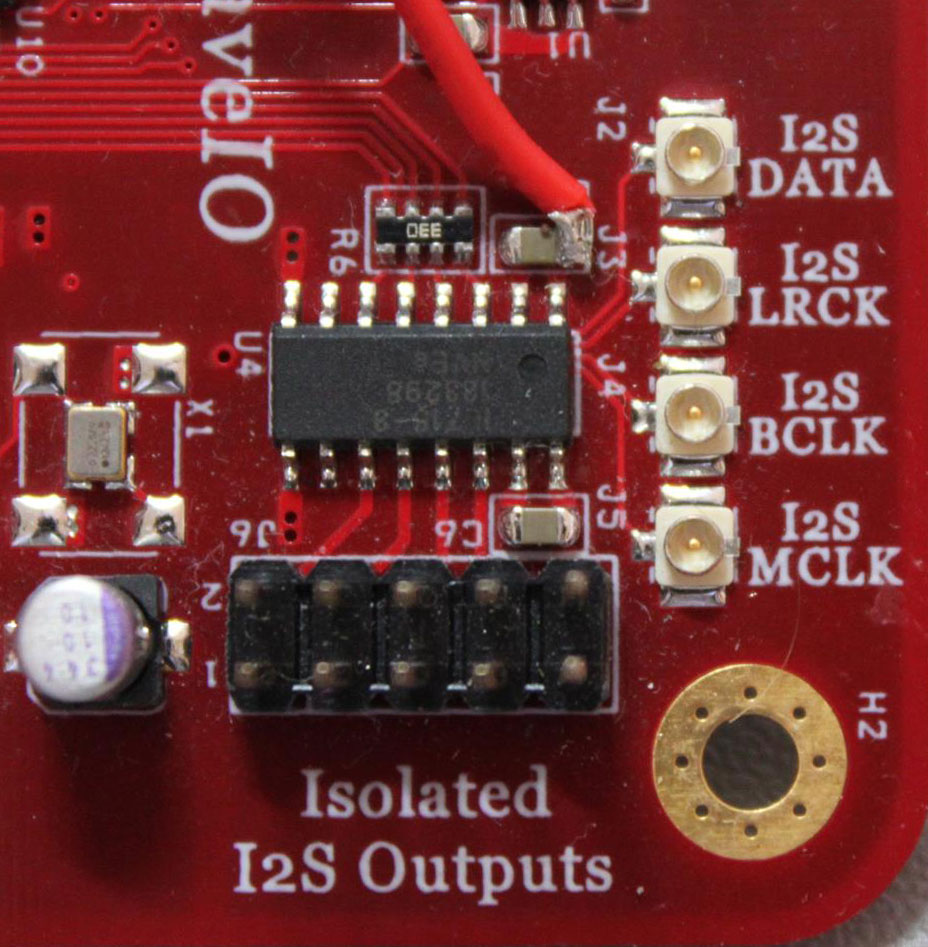

You will notice that there is no Vcc pin on J9. In order to power the isolator, we will have to “steal” power from elsewhere on the board. A good place to tap is the power pin of the on-board I2S isolator, just to the left of the I2S LRCK U.FL:
hookup_waveIO_power
