DIYINHK XMOS Multichannel 32ch USB to/from I2S/DSD SPDIF Interface

About a month ago DIYINHK released a USB to I2S interface board based on the brand new and all-powerful XMOS xCORE-200 chip.

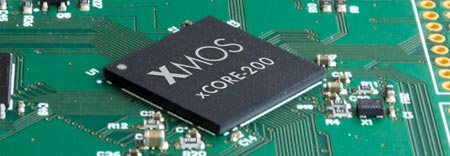

xcore-200-microcontroller

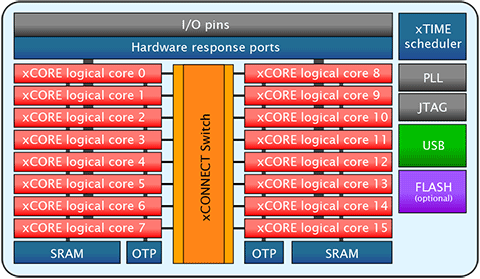

cXU216[1]

The specific chip used by DIYINHK is the middle-of-the-line XU216-512 which corresponds to some pretty serious horsepower: 16 logical cores for a total of 2000 MIPS, 512KB SRAM, 2MB FLASH.

IMG_0622_res

So, what can we do with all this horsepower you say? It’s simple. Tons of channels of high-resolution audio. Plus I2S inputs, besides the usual outputs. Plus DSD1024. Plus use a cool OLED display as a VU meter.

The board I bought came with the default firmware, which supports:

  • 6 channel 384kHz I2S output
  • 4 channel 384kHz I2S input
  • spdif output
  • OLED VU meter
  • Volume up/down control button

Here is a video of it in action:

A maximum 32 channels can be supported with the right firmware (not provided by DIYINHK).

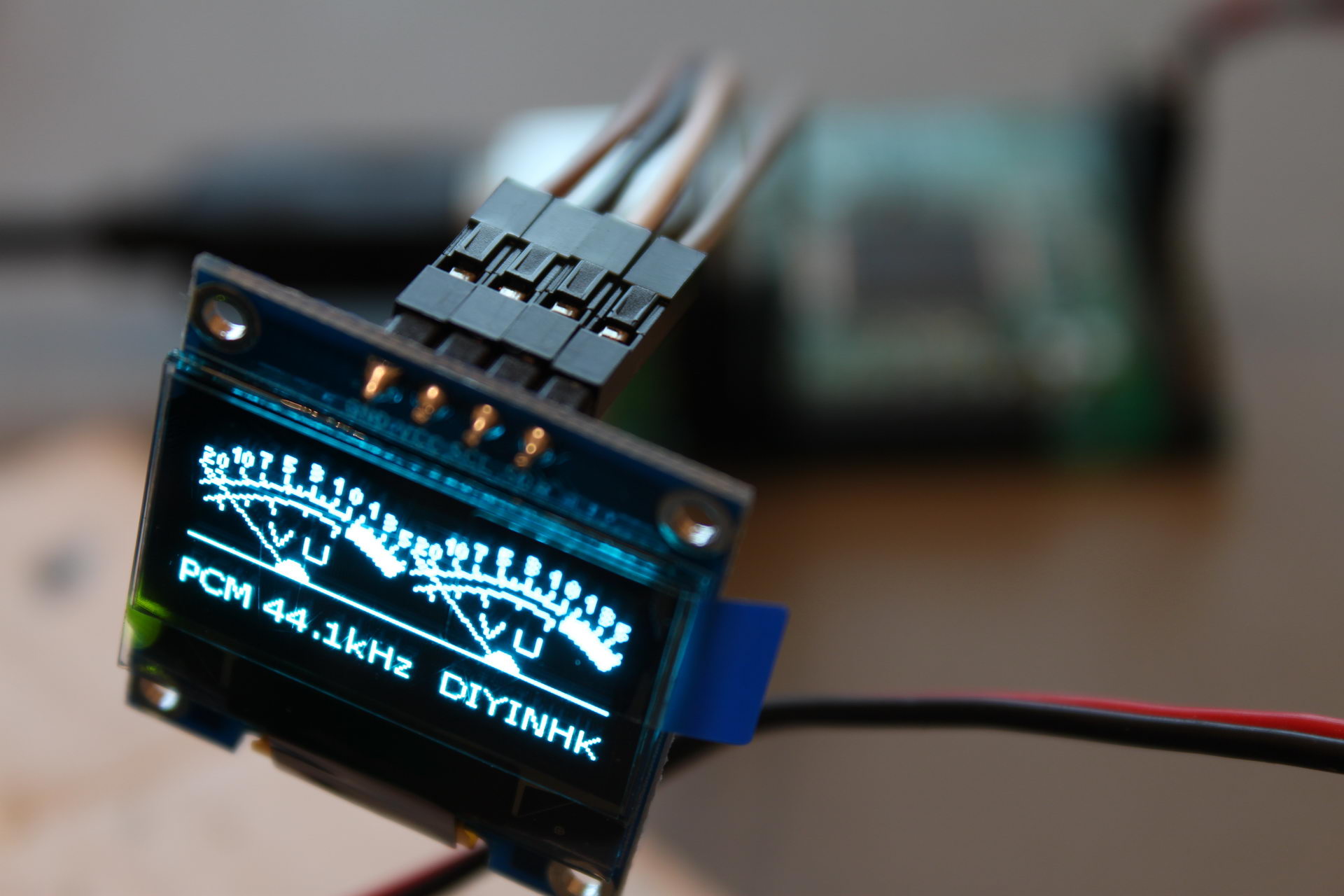

DIYINHK XMOS multi 1

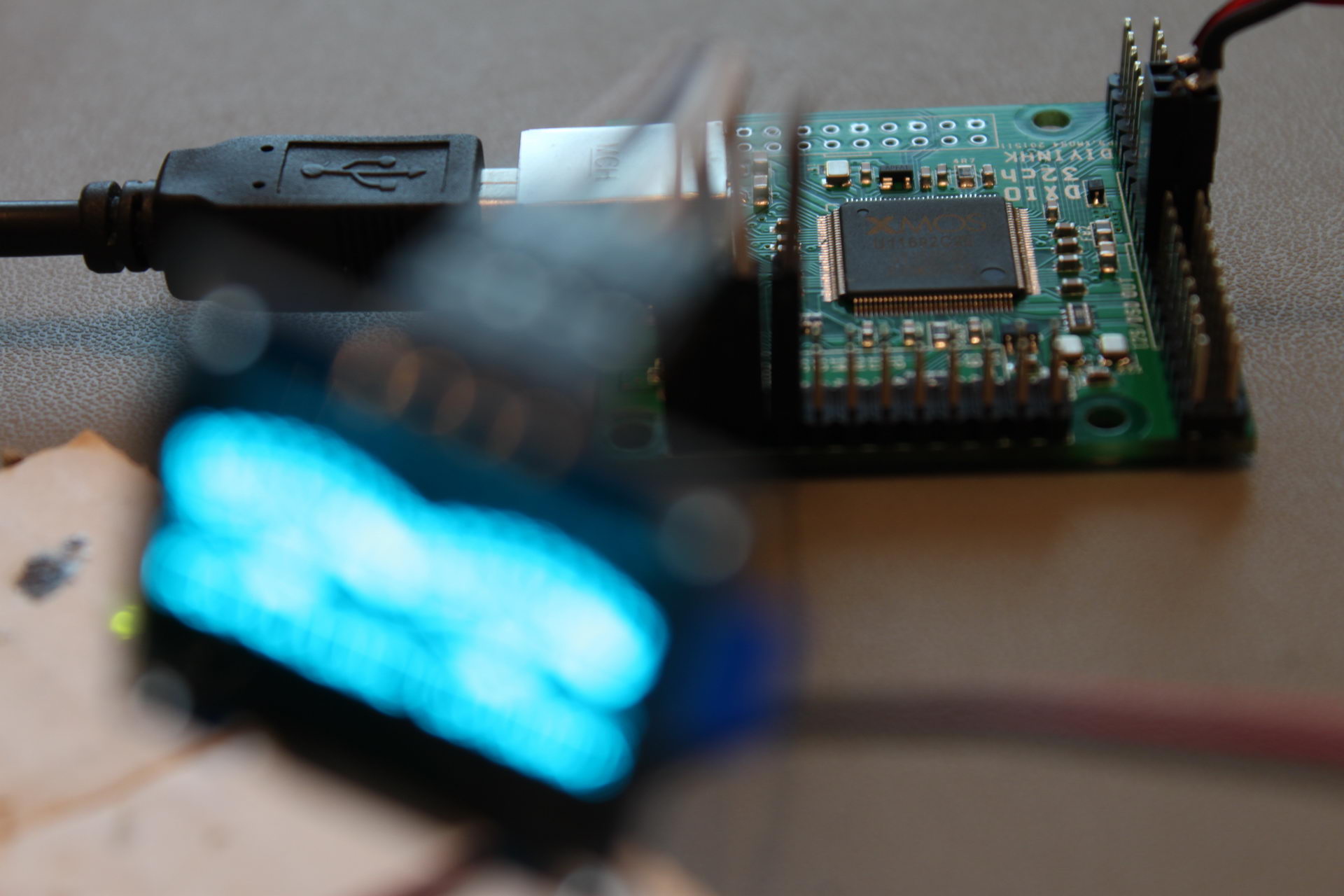

DIYINHK XMOS multi 2

The board (a 4-layer design, btw) comes with three high quality NDK NZ2520SD Ultra low phase noise oscillators. There is provision for powering two of the oscillators externally, by removing a ferrite bead and applying power through one of the headers.

The board is not USB powered. It needs a relatively beefy 3.3V power supply, capable of providing a maximum of 800mA (even though a typical power consumption is in the neighborhood of 570mA). Beware, a weak power supply or an inadequate connector will cause to board to not power up.

It comes with a fully featured Thesycon driver for Windows. Linux & Mac OS don’t need a driver.

An interesting detail is that the Windows 10 driver that is available only supports stereo operation and no multichannel (v2.26). If you want multichannel you’ll have to go back to Windows 7 (v1.67) (or perhaps Linux or Mac OS, it isn’t clear..).

DIYINHK’s site says that the latest available driver is v2.26, but I did not find such a driver in their downloads section, so I emailed them about it. They sent me a link for an even newer driver, v3.20.

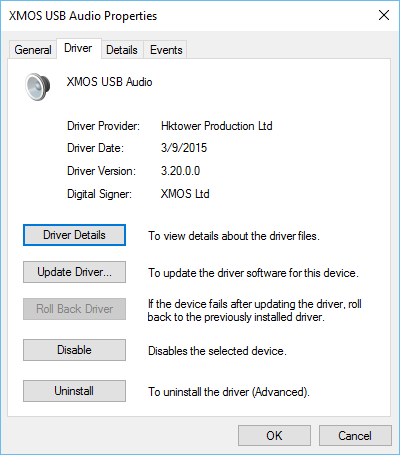

DIYINHK XMOS Driver 3.20 1
DIYINHK XMOS Driver 3.20 2
DIYINHK XMOS Driver 3.20 3

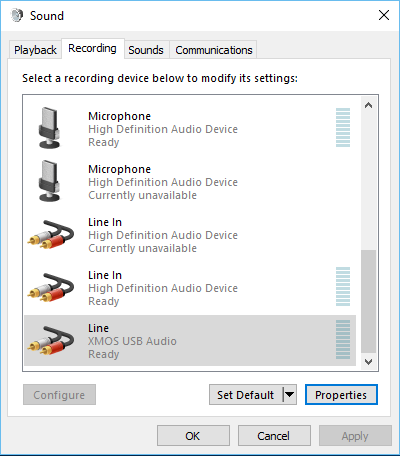

DIYINHK XMOS Driver 3.20 4
The board has a ton of exposed I/O, split into three 0.1″ headers. These are the pinouts, according to DIYINHK:

xmos-multichannel-high-quality-usb-tofrom-i2sdsd-spdif-pcb

Now, if these pinouts look somewhat cryptic to you, you are not alone. I will try to clarify things a bit.

This is the most interesting header:

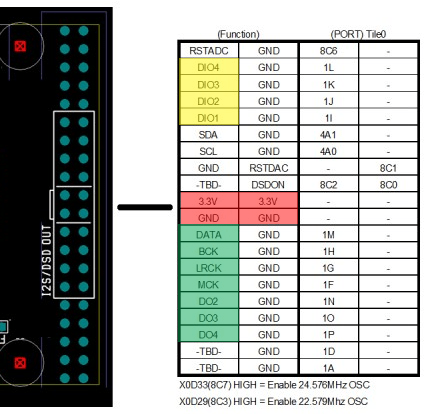

Header 1

I have marked in red the power supply input. It is a good idea to use all of the pins for making the connections, since ~800mA is nothing to sneeze at.

The pins in green are the I2S outputs. For 2 channel operation you will need to connect the DATA, BCK & LRCK pins. The rest of the output channels should be available at pins DO2, DO3 and DO4. I say “should” because I haven’t tested them. I should repeat that multichannel operation with the provided driver is only possible at the moment with Windows 7 (and possibly Linux & Mac OS).

The pins in yellow are the I2S DATA inputs. For 2 channel operation you will need to connect the DIO1, BCK & LRCK pins. The rest of the input channels should be pins DIO2, DIO3 and DIO4. The same multichannel restrictions I mentioned above apply to the I2S inputs.

The OLED screen is connected to one of the side headers, like this:

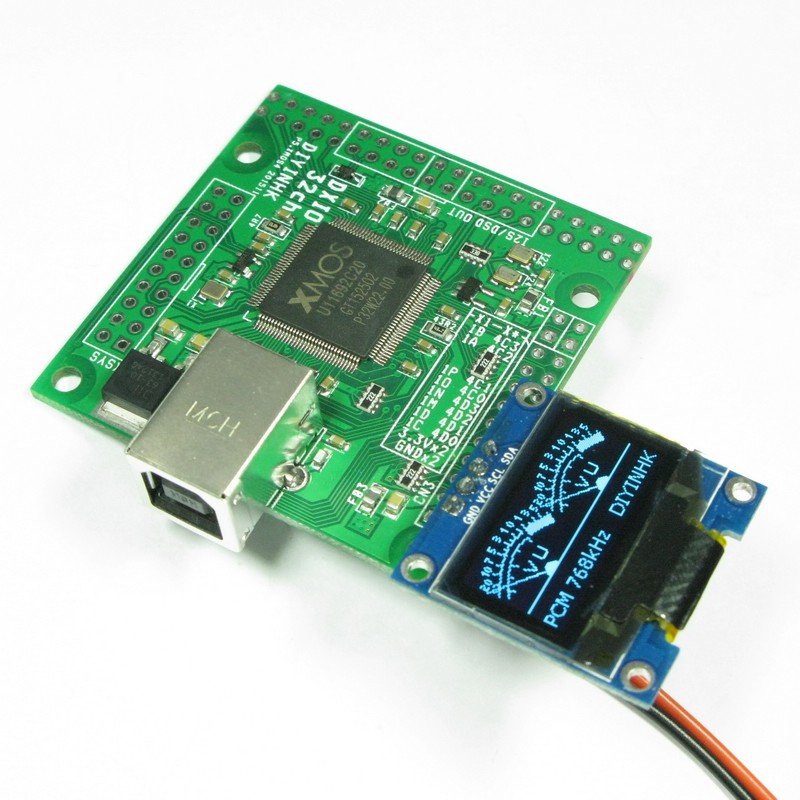

xmos-multichannel-high-quality-usb-tofrom-i2sdsd-spdif-pcb (3)

DIYINHK XMOS OLED IMG_0636 (Medium)

The left header is the XSYS connector for uploading firmware to the XMOS.

Next up: connecting it to my PCM4222 EVM ADC board.
